corr.setupEsymDen

class nucleardatapy.corr.setup_EsymDen.setupEsymDen(constraint='2014-IAS', Ksym=0.0)

Instantiate the values of Esym and Lsym from the constraint.

Parameters:

constraint (str.) – name of the model: ‘2014-IAS’, …

Returns:

constraint, ref, label, note, Esym, Lsym.

constraint

Attribute the constraint

esym_e2a_max

Attribute the maximal symmetry energy

esym_e2a_min

Attribute the minimal symmetry energy

print_outputs()

Method which print outputs on terminal’s screen.

Here are a set of figures which are produced with the Python sample: /nucleardatapy_sample/corr_setupEsym_plot.py

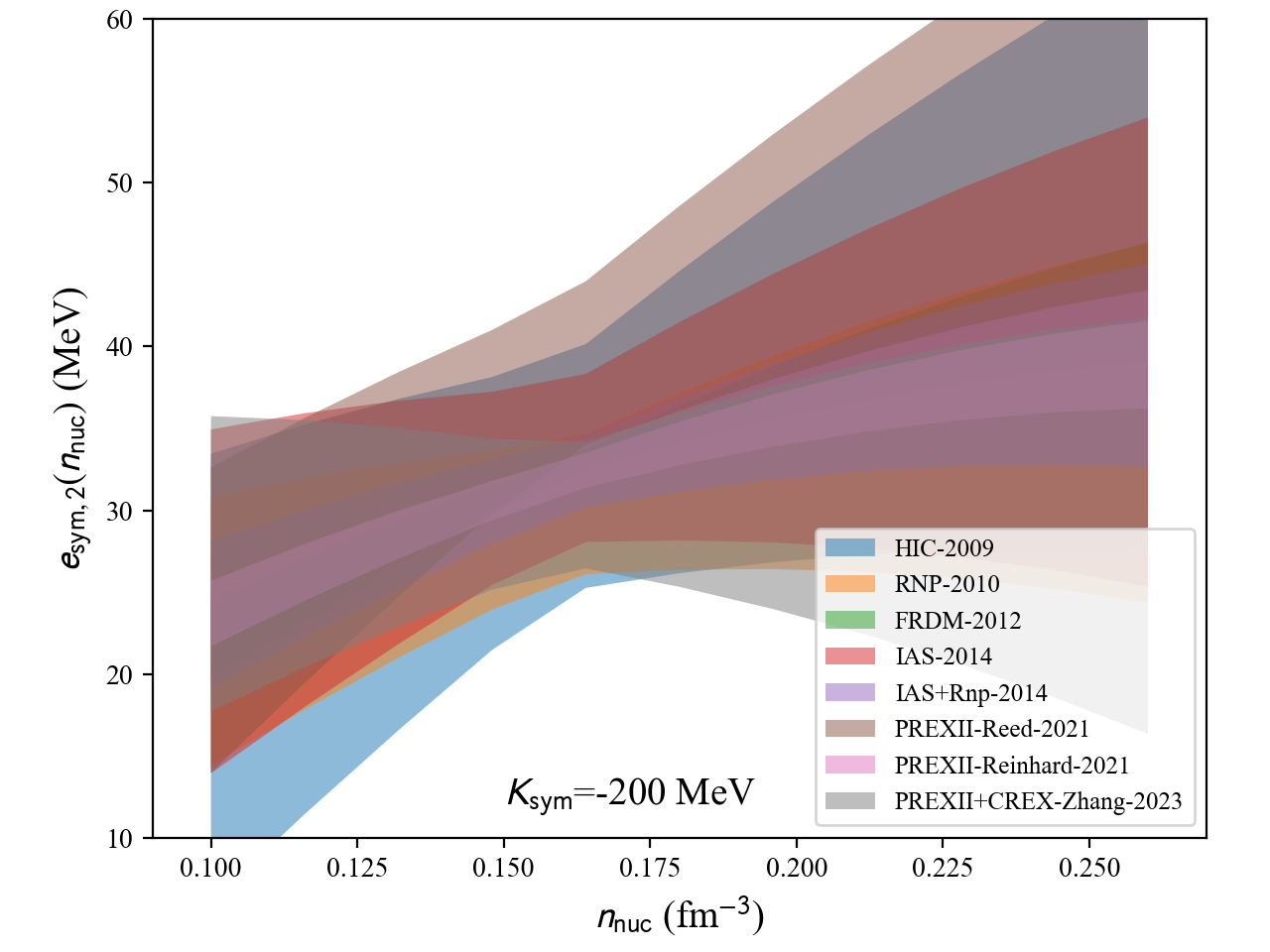

Uncertainty band for Esym as a function of the density for Ksym=-200 MeV.

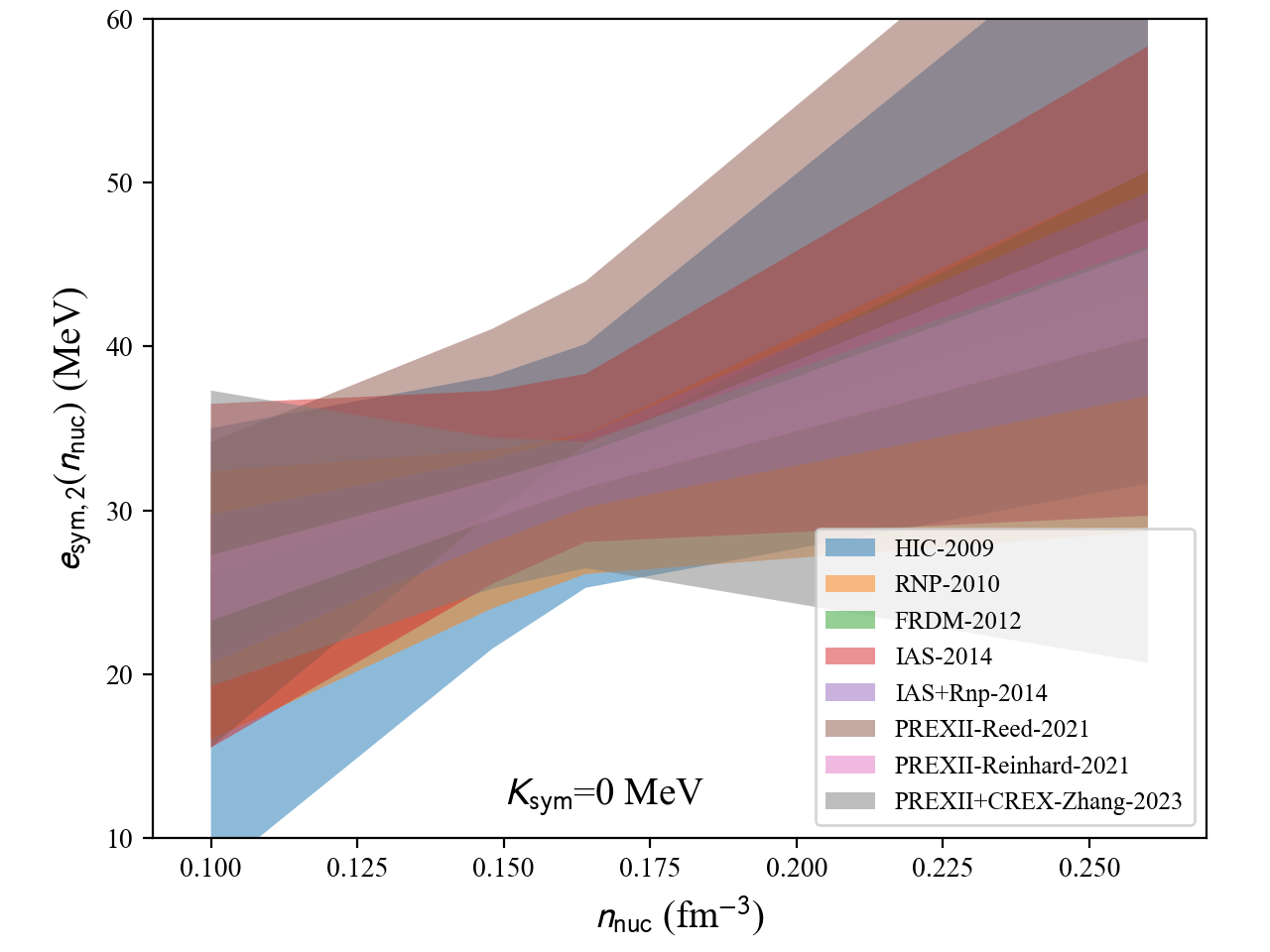

Uncertainty band for Esym as a function of the density for Ksym=0 MeV.

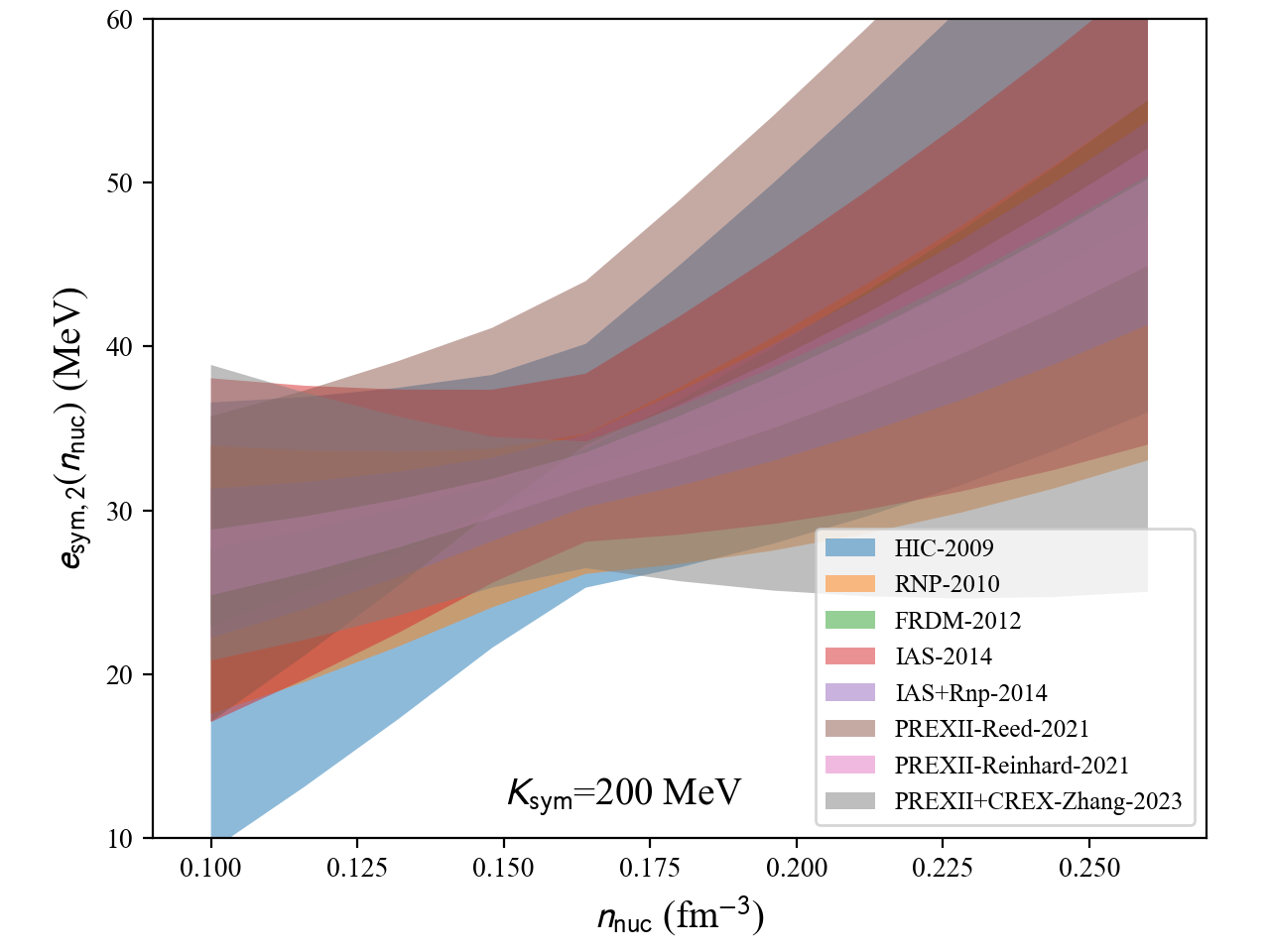

Uncertainty band for Esym as a function of the density for Ksym=200 MeV.
