hnuc.setupRE1LExp

nucleardatapy.hnuc.setup_re1L_exp.re1L_exp_tables()[source]

Return a list of the tables available in this toolkit for the charge radiuus and print them all on the prompt. These tables are the following ones: ‘2013-Angeli’.

Returns:: The list of tables.
Return type:: list[str].

class nucleardatapy.hnuc.setup_re1L_exp.setupRE1LExp(table='2016-1L-GHM')[source]

Instantiate the object with binding energies given from a table.

This choice is defined in the variable table.

The tables can chosen among the following ones: ‘2018’.

Parameters:: table (str, optional.) – Fix the name of table. Default value: ‘2016-GHM’.

Attributes:

Parameters:

model (str, optional)
between (The model to consider. Choose)

A: Attribute A (mass of the nucleus).

N: Attribute N (number of neutrons of the nucleus).

Q: charge of the hypernuclei (=Z, since Lamnda is charged 0)

S: Strangness number

Z: Attribute Z (charge of the nucleus).

color: Attribute color of points

e_unit: Attribute lbe unit.

ell: Attribute the angular momentum of the state.

label: Attribute the label for the data referenced in figures.

lre: Attribute 1L removal energy in MeV.

lre_err: Attribute 1L binding energy error in MeV.

mark: marker shape

note: Attribute providing additional notes about the data.

print_latex()[source]: Method which print outputs on terminal’s screen in Latex format.

print_outputs()[source]: Method which print outputs on terminal’s screen.

probe: Attribute the probe.

ref: Attribute providing the full reference to the paper to be citted.

sps: Attribute the s.p. state.

symb: symbol representing the nucleus

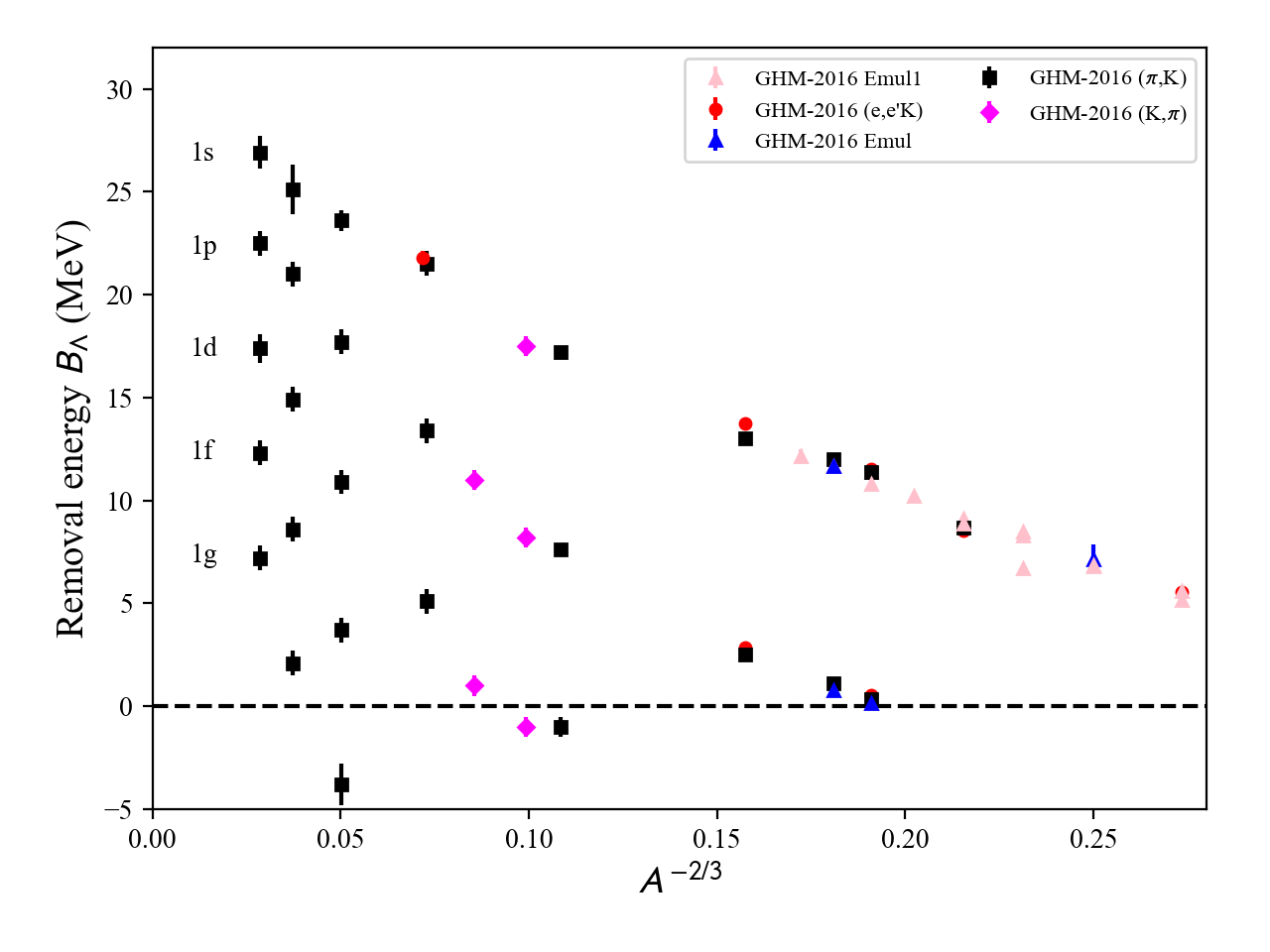

Here are a set of figures which are produced with the Python sample: /nucleardatapy_sample/hnuc_setupRE1LExp_plot.py
